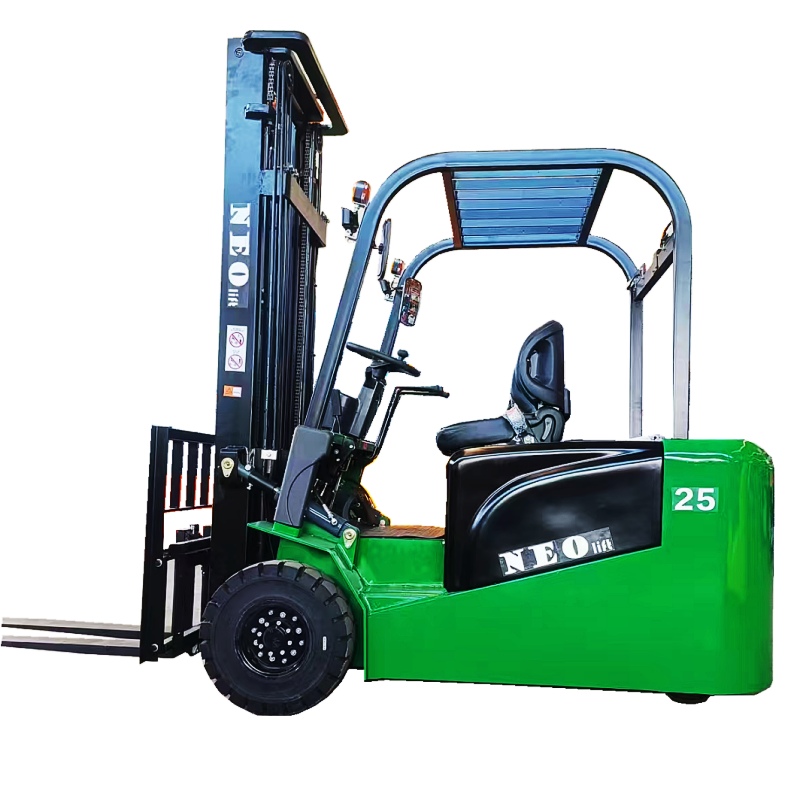

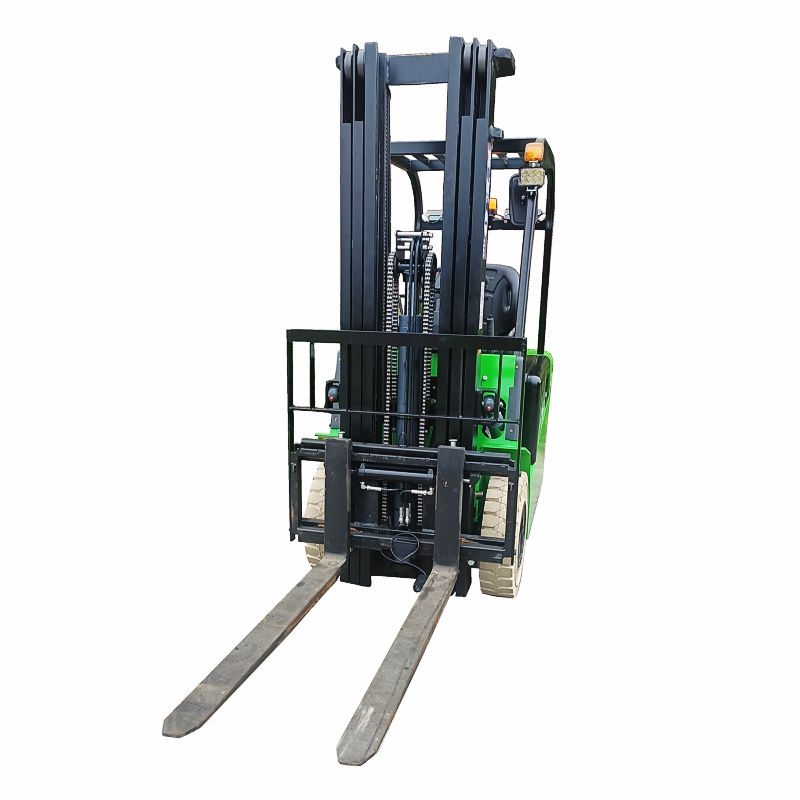

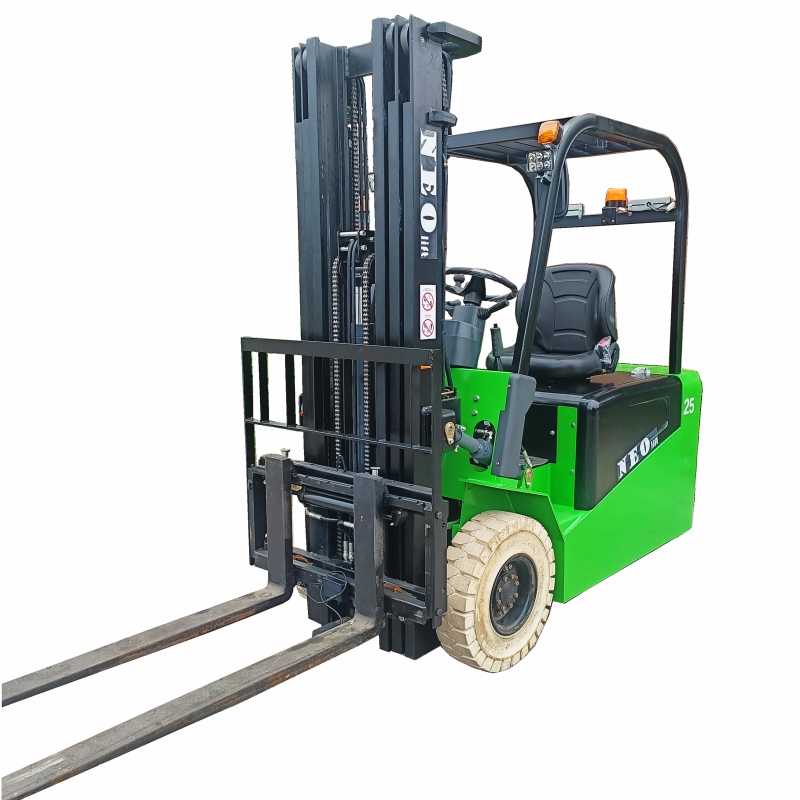

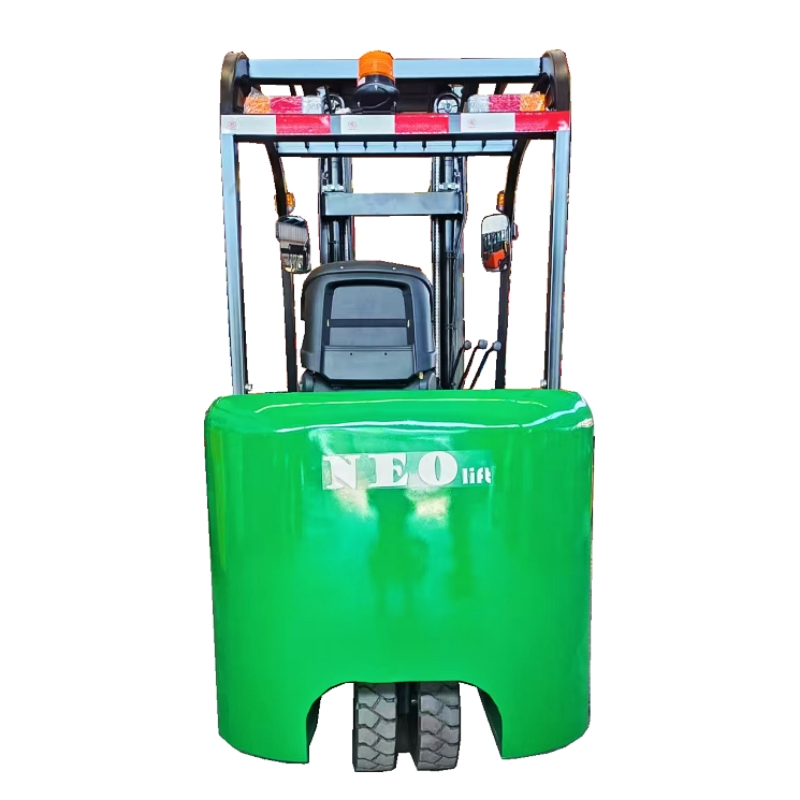

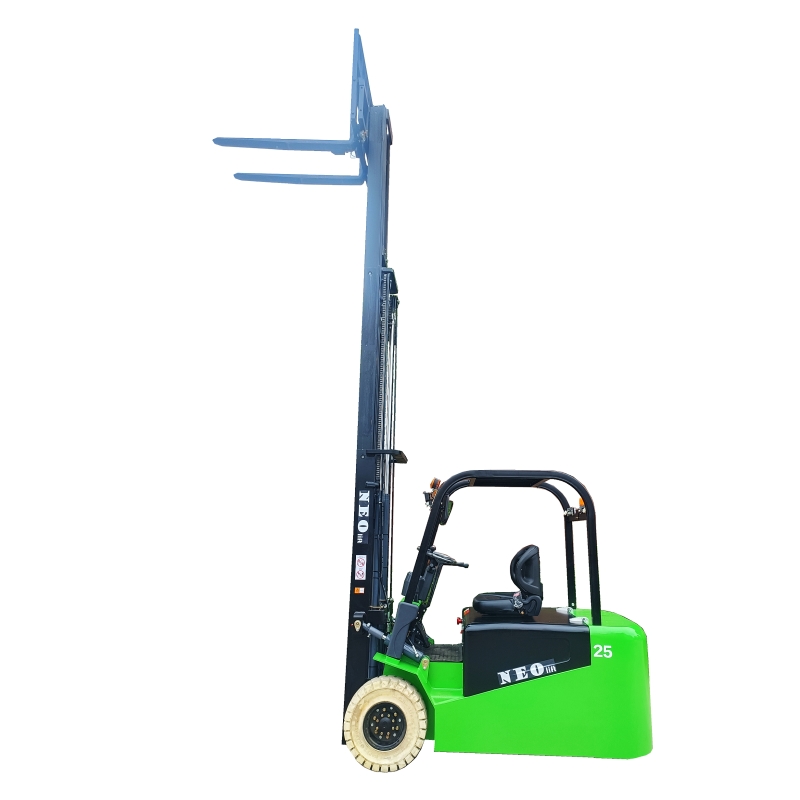

The electric 3 wheel counterbalance forklift with narrow body is a non-standard customizable model with a cutomizable narrow body ≤1000mm that can work in very narrow spaces. The standard load is 1000kg-3000kg, the lifting height can be customized, and it is equipped with large capacity lead acid battery.It can be equipped with lithium battery with battery heating system, suitable for cold storage operation.
Item No :
NPQOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
20-30 daysWeight :
2500-3500kgElectric 3 wheel counterbalance forklift with narrow body
The electric 3 wheel counterbalance forklift with narrow body is a non-standard customizable model with a cutomizable narrow body ≤1000mm that can work in very narrow spaces. The length and width of the vehicle body can be customized according to customer requirements.The standard load is 1000kg-3000kg, the lifting height 3000-8000mm, and it is equipped with large capacity lead acid battery.The vehicle adopts front two-wheel drive, has strong power, and can work normally in wetlands.It can be equipped with lithium battery with battery heating system, suitable for cold storage operation.

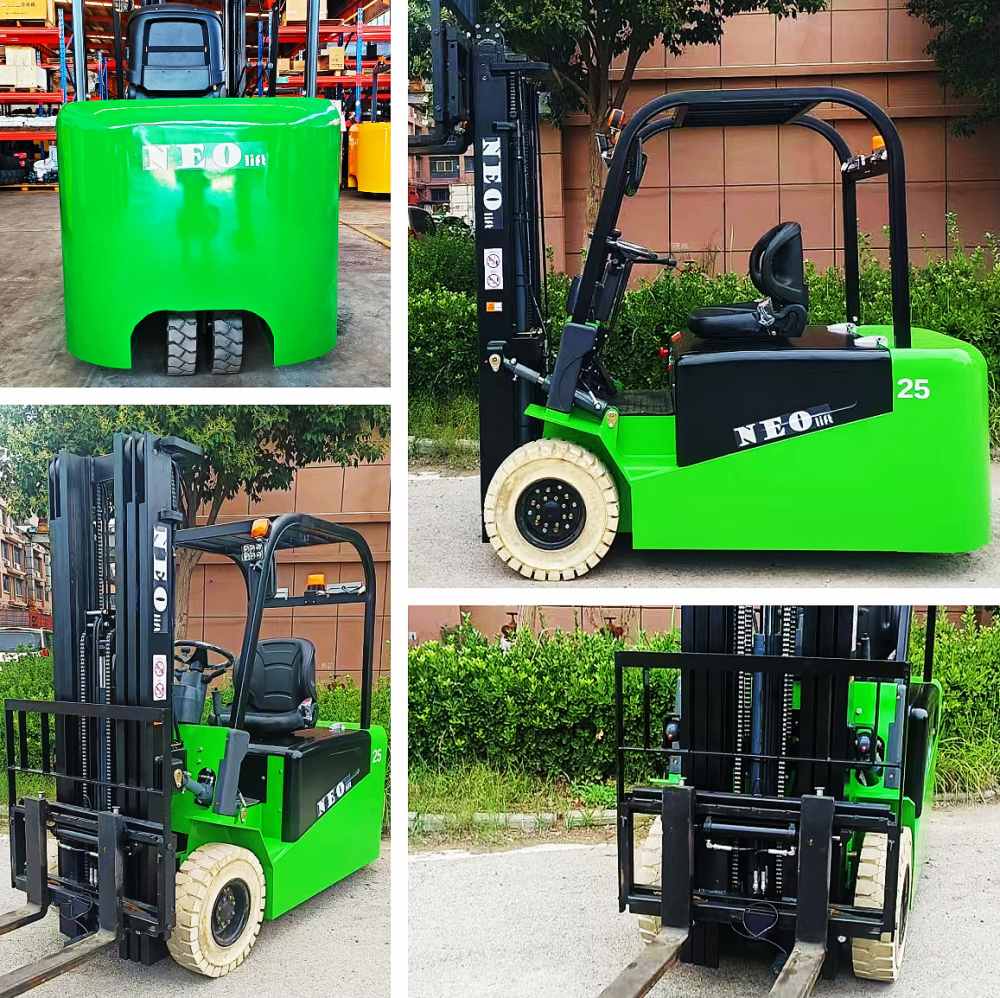

Details:
Features:
1. Full AC system throughout the vehicle
2. Front-wheel dual-drive system for powerful power
3. Multi-function color digital instrument panel allows operators to quickly monitor forklift status
4. Lithium battery heating system available for cold storage
5. Narrower chassis for operation in relatively confined spaces
6. Low center of gravity design for increased safety
7. Three-point support structure for greater stability
8. Wide-view mast design for improved efficiency

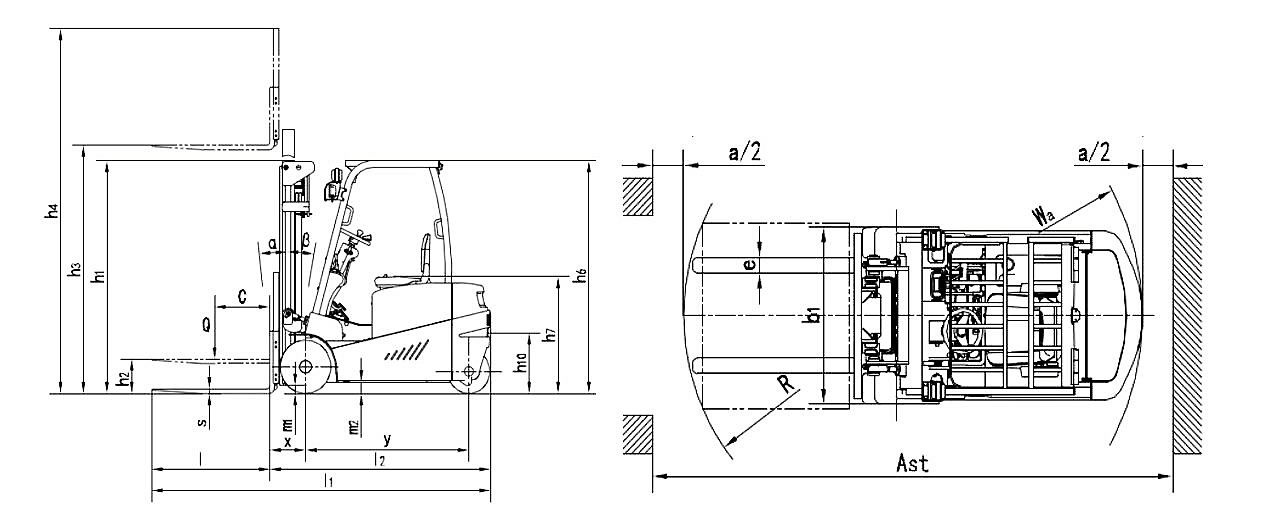

Specification：
|
Model of the forklift |
NPQ15 |
NPQ20 |
|
Rated lifting weight (kg) |
1500 |
2000 |
|
Driving speed without load (km/h) |
12 |
12 |
|
Driving speed with load (km/h) |
8 |
8 |
|
Gradeability (no load/full load) (%) |
15/10 |
15/10 |
|
Turning radius (mm) |
1940 |
1940 |
|
Overall width of the forklift (mm) |
≤1000 |
≤1000 |
|
Total Weight |
2800 |
3000 |
|
Drive motor power |
5kW |
5kW |
|
Material for driving wheels |
Polyurethane |
Polyurethane |

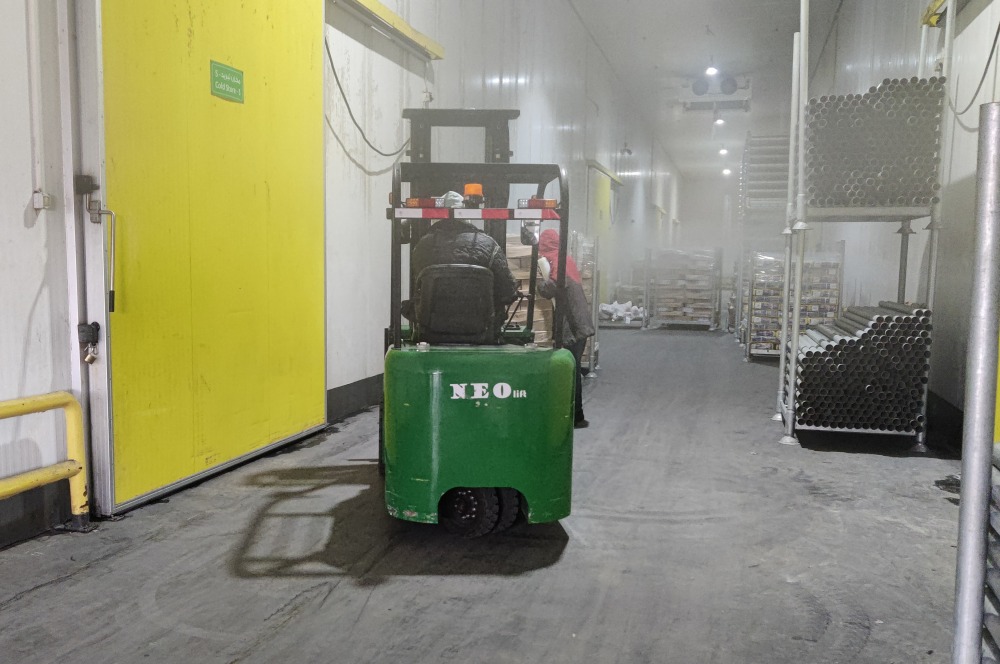

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics

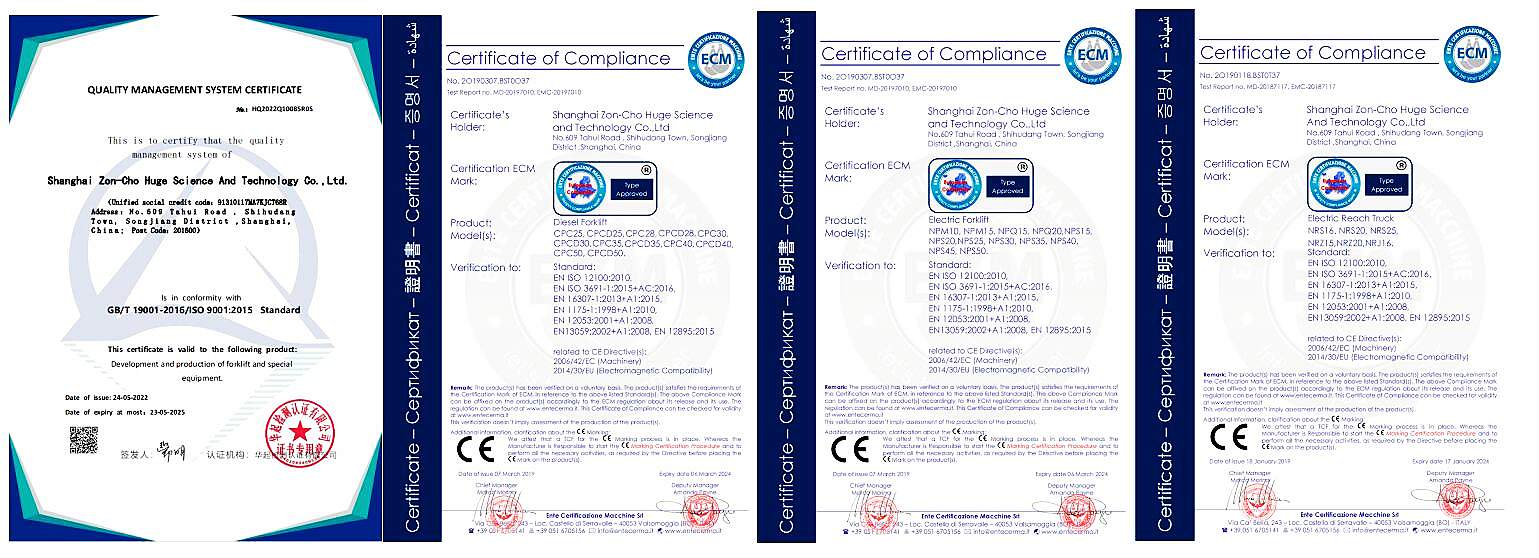

Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
