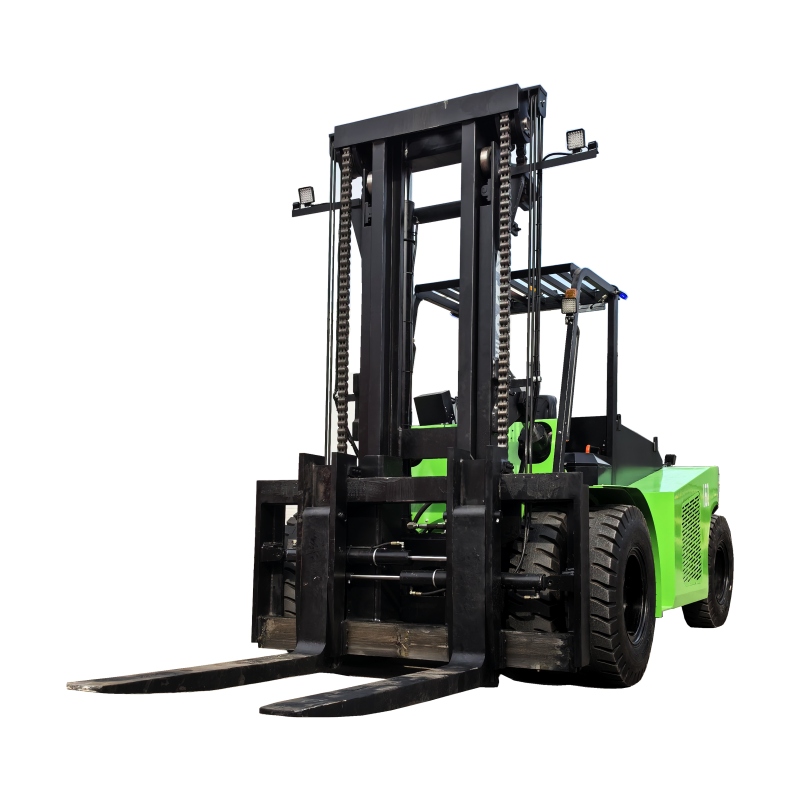

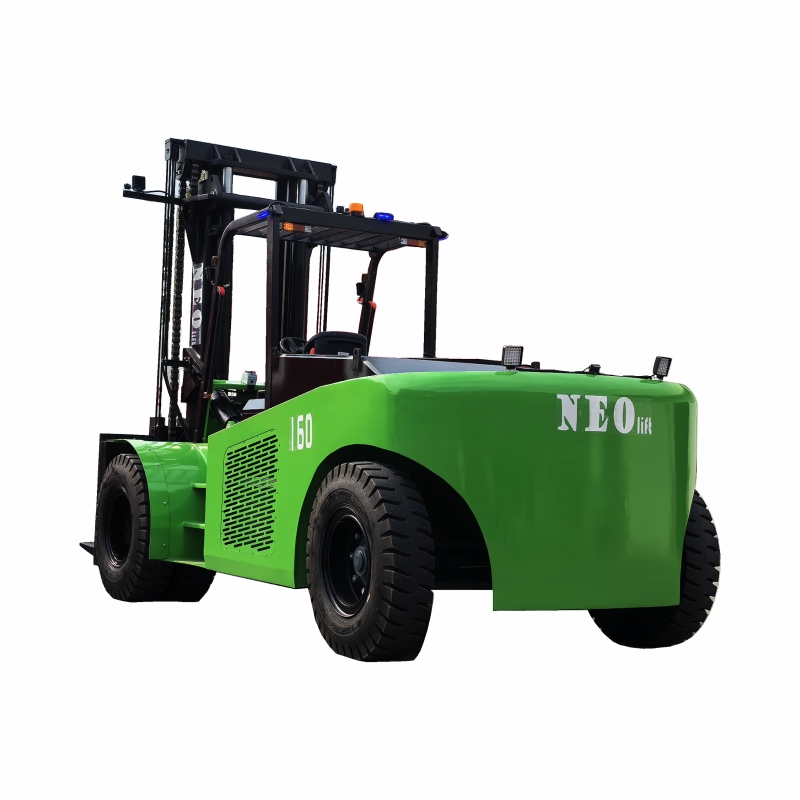

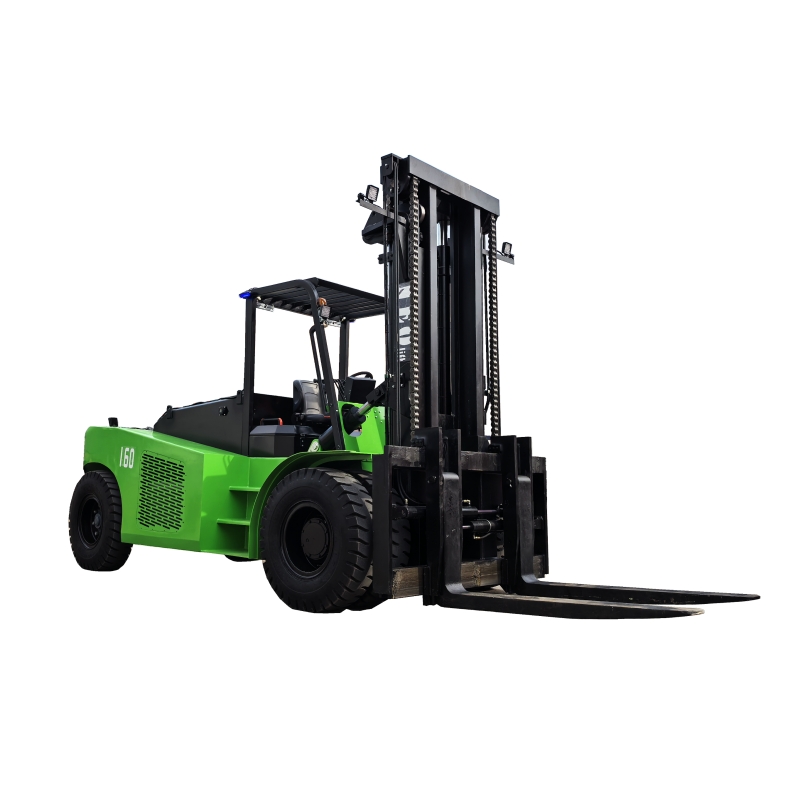

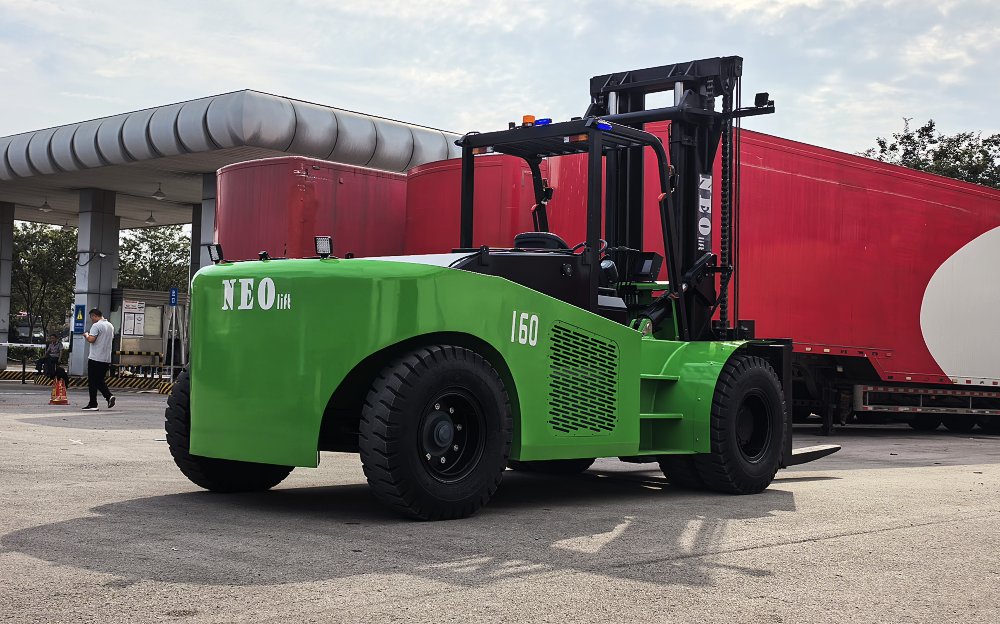

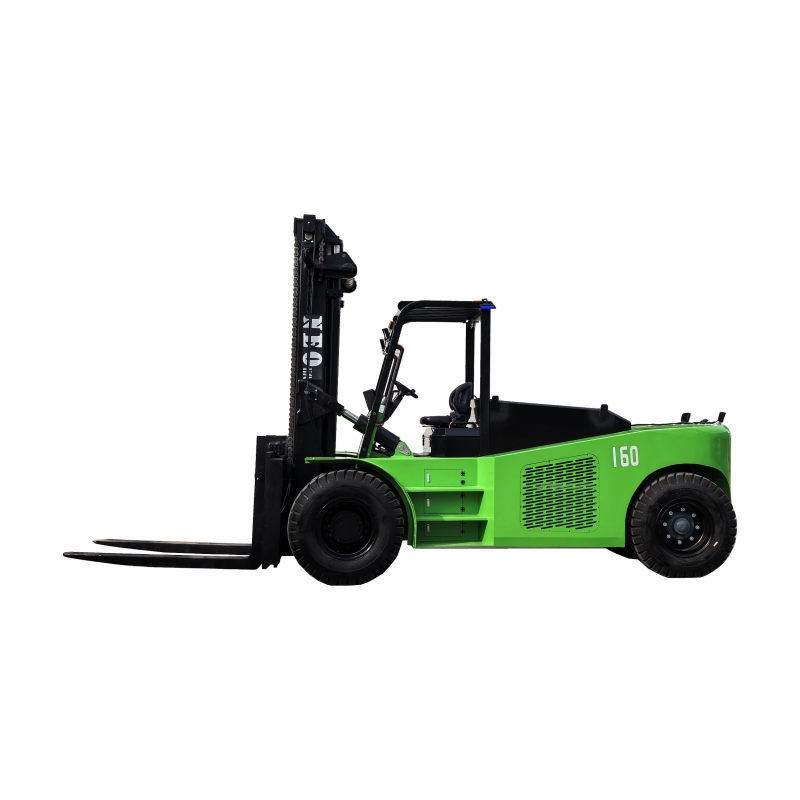

13-20Tons Heavy Duty Electric Forklift With Lithium Battery with a lifting height range of 3-8 meters.The independently developed variable speed constant displacement control system provides global power matching, on-demand fuel supply, and minimizes throttling and overflow losses. Coordinated motor control optimizes motor-load matching, optimizes energy management, and ensures efficient operation. Time-sharing operation and automatic idle shutdown reduce motor and pump idling energy consumption. A 580V high-voltage solution reduces current draw. A high-efficiency permanent magnet synchronous motor and intelligent door drive variable speed control generate very little heat, saving 20% more energy than asynchronous motors. Regenerative power generation for various negative loads, utilizing lithium-ion battery energy recovery, improves overall energy efficiency.
Item No :
NPSOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
90-120daysWeight :
20000-30000kg13-20Tons Heavy Duty Electric Forklift With Lithium Battery
This 13-20Tons Heavy Duty Electric Forklift With Lithium Battery features a lifting height range of 3-8 meters. It utilizes a proprietary variable speed constant displacement control system to minimize throttling and overflow losses. It utilizes lithium iron phosphate batteries, which offer excellent thermal stability, ensuring a safe, efficient, and long-lasting battery system with an estimated lifespan of 8-10 years. Its advanced battery management system (BMS) provides 24/7 real-time safety monitoring of overcharge, over-discharge, overcurrent, insulation resistance, and battery operating temperature, ensuring the safety, efficiency, and longevity of each battery pack. It also features an electric vehicle-grade motor and controller, full component status monitoring, an IP67-rated electrical system, high-quality, proven hydraulic components, and flame-retardant wiring, ensuring reliability and durability even in harsh working environments. It is a zero-pollution, low-noise, and environmentally friendly device. Its powerful power makes it suitable for diverse and complex working conditions, including docks, logistics parks, and construction sites.

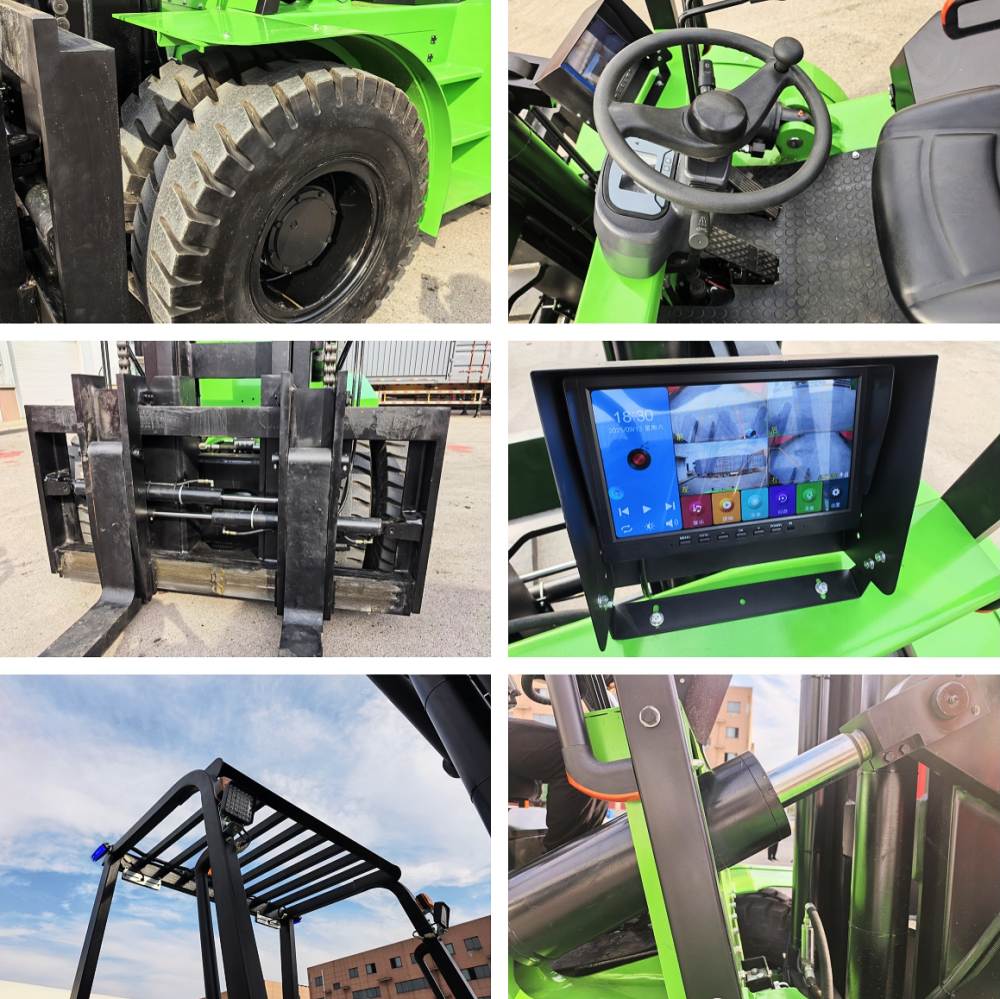

Details:
Feature:
1. Economical:
Low operating costs: Electricity costs are approximately 20-30% of the fuel costs of traditional construction machinery.
Low maintenance costs: Fewer wearing parts, low failure rate, and simplified maintenance.
2. Safe, efficient, and long-life battery system:
Utilizing lithium iron phosphate batteries, which offer excellent thermal stability and can withstand over 2,800 deep charge and discharge cycles, the advanced battery management system (BMS) provides 24/7 real-time safety monitoring of overcharge, over-discharge, overcurrent, insulation resistance, and battery operating temperature, ensuring the safety, efficiency, and longevity of each battery pack.
3. Reliable and high-performance:
Electric vehicle-grade motors and controllers, full vehicle component status monitoring, IP67-rated electrical system, intelligent electronic fan, efficient liquid cooling system, integrated battery heating film, fully electronic operation of working devices, and multi-mode switching for safer handling of precision equipment.
4. Long driving range:
Independently developed drive solutions and integrated management and control systems, high-efficiency range operation, and braking kinetic energy recovery for power generation significantly reduce power consumption and improve driving range under the same conditions.
5. Comfortable and environmentally friendly
Zero emissions, zero pollution, and no exhaust. The electric motor produces low noise and vibration. The intelligent, fully electronic control system ensures easy operation.
Specification:
| Model | NPS160 | |
| Power type | Battery | |
| Rated capacity | kg | 16000 |
| Load center | mm | 600 |
| Wheelbase | mm | 3200 |
| Service weight | kg | 20000 |
| Wheel type | Pneumatic tire | |
| Number of wheels,front/rear (x=drive wheel) | 4x/2 | |
| Mast tilting | ° | 6/12 |
| Overall width | mm | 2250 |
| Driving speed(load/unload) | km/h | 16/20 |
| Lifting speed(load/unload) | mm/s | 220/270 |
| Max.Gradeability(load/unload)(S2-5min) | % | 15/20 |
| Driving motor(S2-60min) |
kw | AC90 |
| Steering system |
Hydraulic type | |
| Brake type | Hydraulic type |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
