The capacity range of heavy-duty electric counterbalanced forklifts are 25-35 tons with a lifting height range of 3-8 meters. They are not simply diesel forklift replacements. Their hydraulic systems have been fully optimized, featuring a proprietary variable-speed constant-displacement control system that achieves global power matching and on-demand oil supply, minimizing throttling and overflow losses. Multi-motor coordinated control optimizes motor-load matching and energy management, ensuring efficient operation. Time-sharing operation and automatic idle shutdown reduce idling energy consumption for the motor and pump. A 580V-612V high-voltage solution reduces current consumption. High-efficiency permanent magnet synchronous motors and intelligent door drive variable speed control generate very little heat, saving 20% more energy than asynchronous motors. They provide regenerative power for various loads, utilizing lithium-ion battery energy recovery to improve overall energy efficiency.
Item No :
NPSOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
90-120daysWeight :

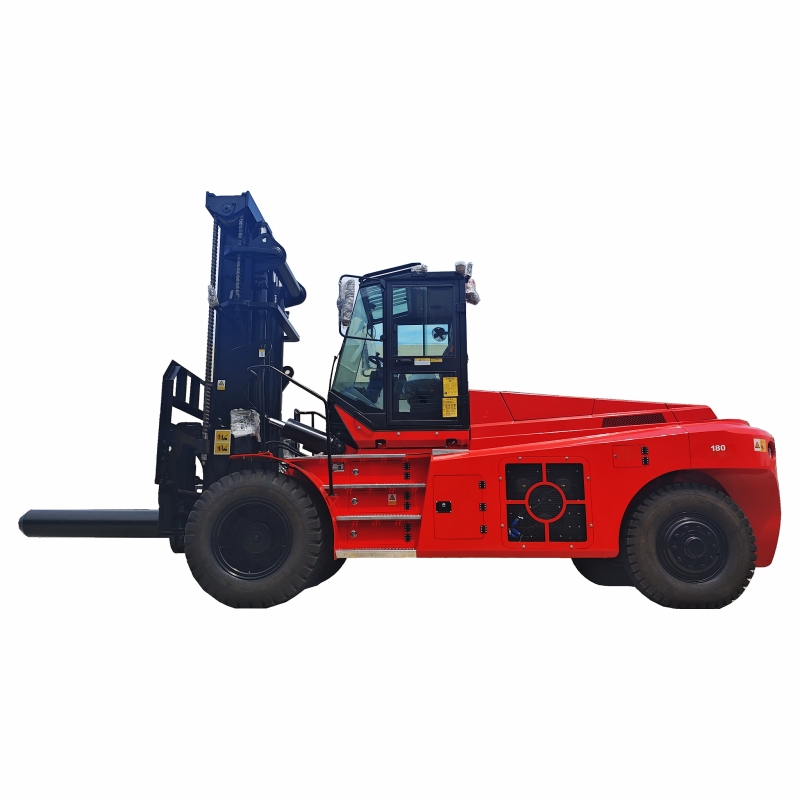

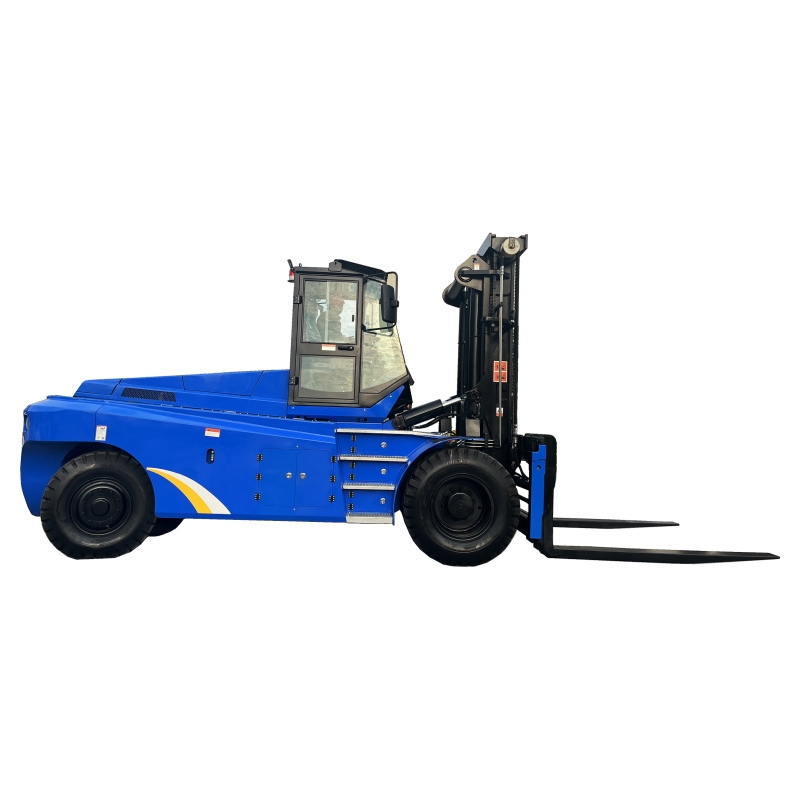

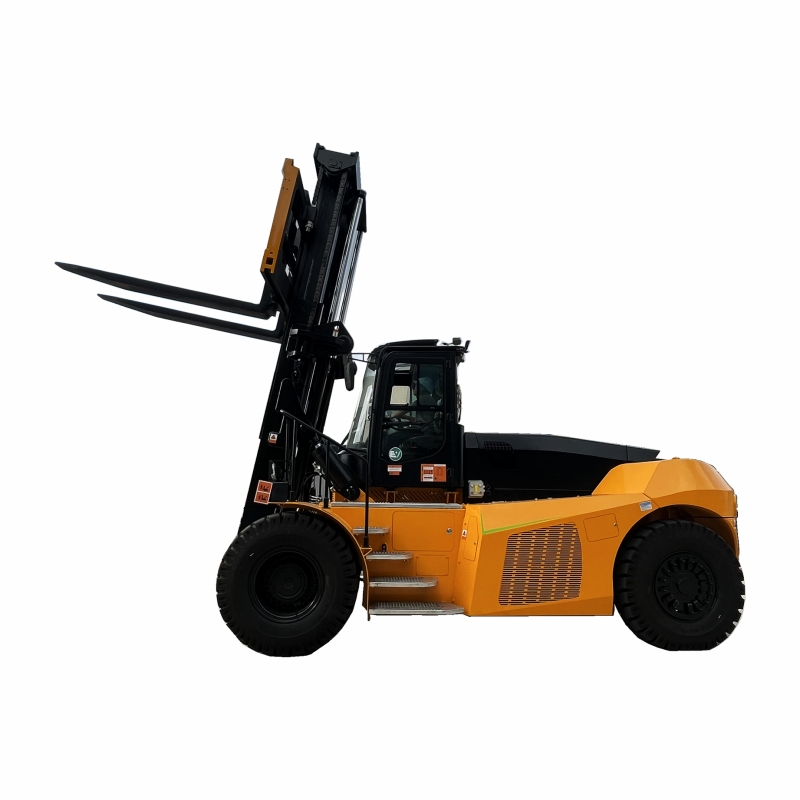

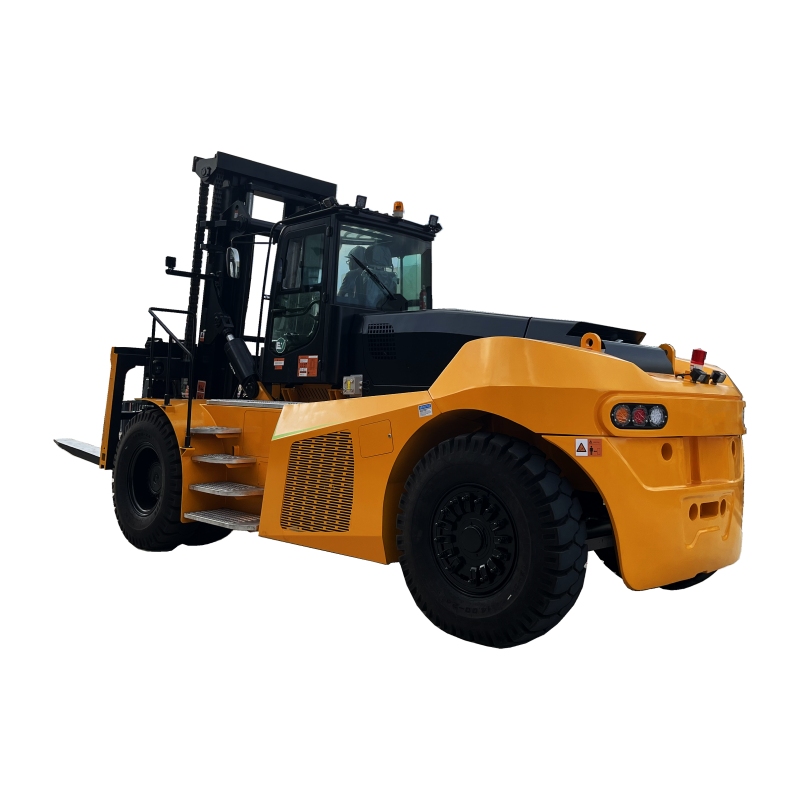

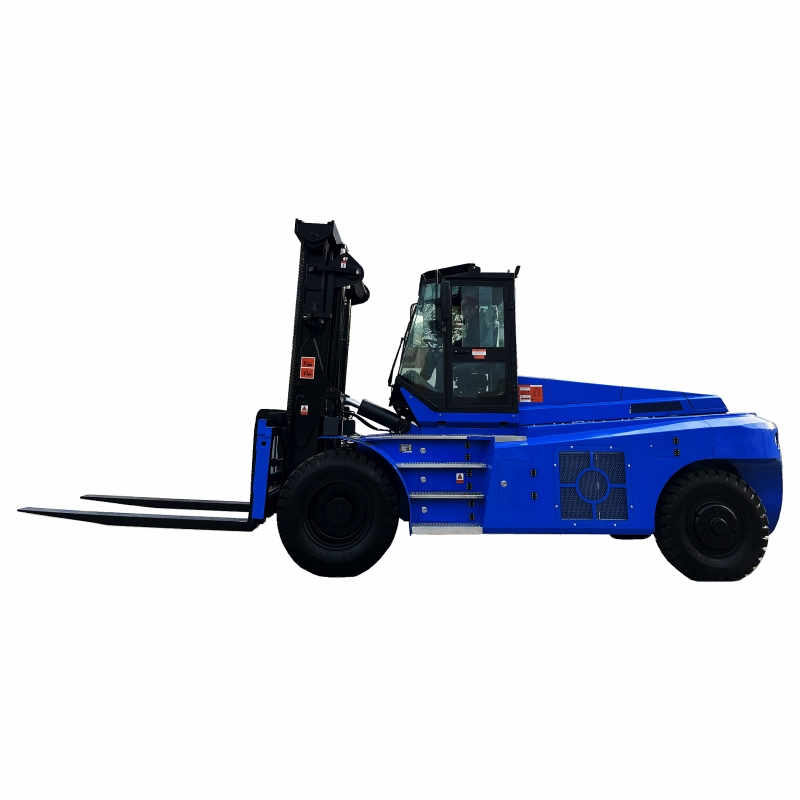

35000-43000kgLarge Capacity Electric Counterbalance Forklift Truck 25-35Tons

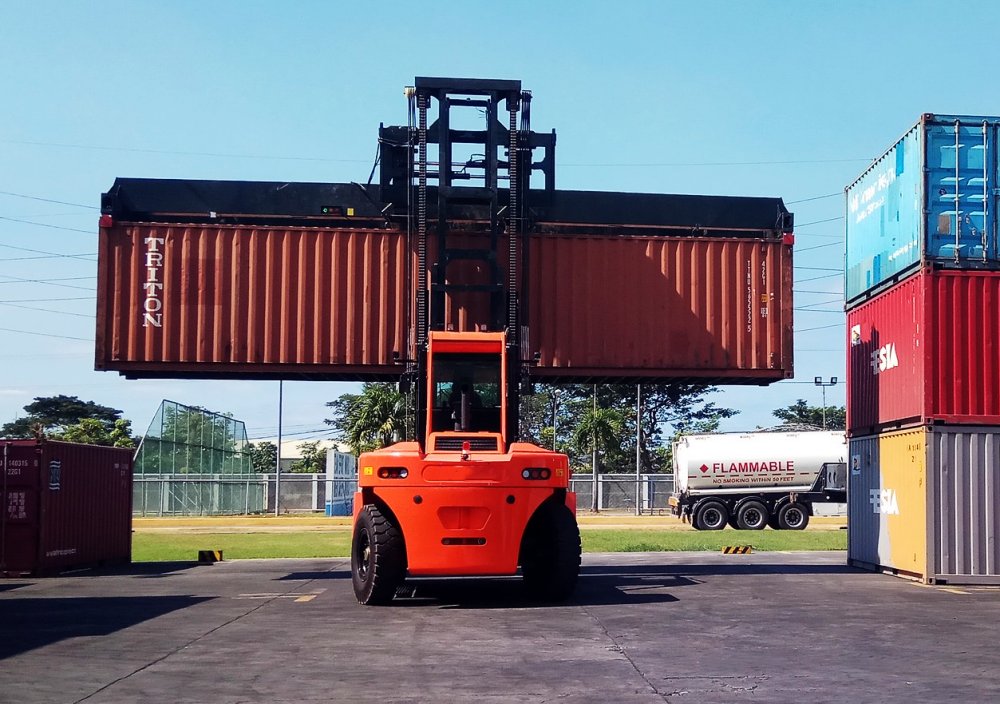

This Large Capacity Electric Counterbalance Forklift Truck 25-35Tons has a lifting height range of 3-8 meters.Its major components, including the front axle, variable hydraulic pump, and battery, are all from renowned brands.The electrical system utilizes a 580V-612V high-voltage system, resulting in low current consumption and minimal heat loss. High-voltage interlocking and insulation testing provide automotive-grade safety. An MSD switch provides one-touch power-off, ensuring peace of mind during maintenance.The standard fully enclosed cab, suspended seat, and 360-degree glass provide a wide and clear field of view. The cab is equipped with air conditioning, heating, a USB port, and a stationery clip for added comfort and convenience.The hydraulic and electrical systems utilize a water-cooling system for long-term continuous operation.A variety of configurations are available, including a 360-degree panoramic imaging system, parking sensors, blue-light width indicators, automatic battery extinguishing and heating, and a mast lift cushion.Heavy-duty electric counterbalanced forklifts are suitable for loading, unloading, stacking, and moving piece items within ports, stations, and businesses. They feature lifting forks at the front and a counterweight at the rear, effectively improving operational efficiency and safety. The electric operation of heavy-duty electric counterbalanced forklifts makes them more suitable for occasions with higher requirements on noise and air pollution.

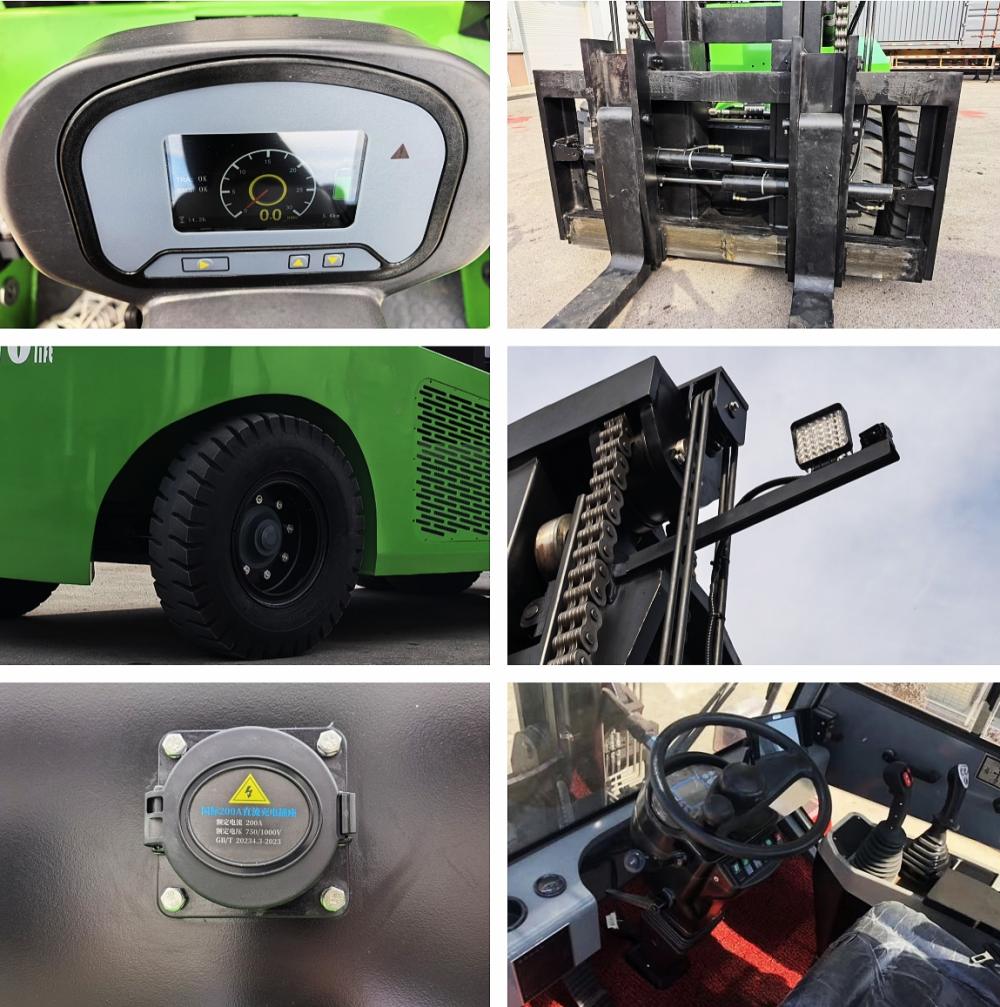

Details:
Feature:
1. Reliable Structural Design：
Utilizing a fully digital prototype design system, the vehicle undergoes finite element analysis, kinematic and dynamic simulation calculations, and rigorous fatigue and vibration testing to ensure structural reliability and durability.
2. Reliable Powertrain：
Utilizing renowned engine and transmission brands, the vehicle boasts reliable quality and powerful performance. Combined with advanced power matching and control technologies, the vehicle achieves optimized power performance.
Multiple Engine and Transmission Protections: Provides comprehensive protection during engine start/stop, operation, and transmission shifting, extending service life.
3. 360 Intelligent Human-Machine Safety Technology：
Utilizing image recognition and other technologies, the vehicle accurately detects people and obstacles in its path and automatically applies the brakes to prevent accidents. This technology offers a high level of intelligence and robust active safety.
4. Battery Heating and Fire Prevention Technology：
Equipped with an advanced battery management system, the vehicle heats and protects the battery based on temperature, providing fire alarm, flame retardancy, and fire extinguishing functions. The fire prevention system is stable and reliable.
5. Camera System：
The vehicle is equipped with long-range and short-range reversing cameras. Dual cameras are mounted on the mast, effectively improving the forward field of view and reducing blind spots.

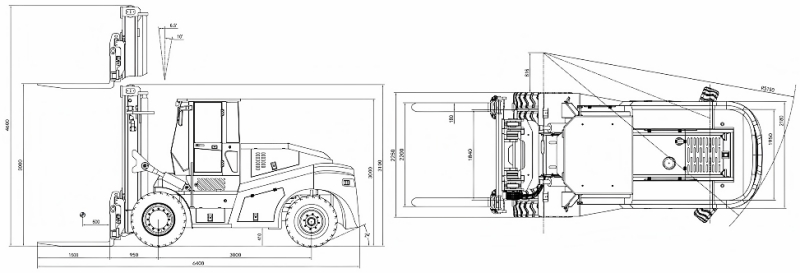

Specification:
| Model | NPS300 | |
| Power type | Battery | |
| Rated capacity | kg | 30000 |
| Load center | mm | 1250 |
| Wheelbase | mm | 4800 |
| Service weight | kg | 40000 |
| Wheel type | Pneumatic tire | |
| Number of wheels,front/rear (x=drive wheel) | 4x/2 | |
| Mast tilting | ° | 6/12 |
| Overall width | mm | 320 |
| Driving speed(load/unload) | km/h | 20/22 |
| Lifting speed(load/unload) | mm/s | 260/280 |
| Max.Gradeability(load/unload)(S2-5min) | % | 15/20 |
| Driving motor(S2-60min) |
kw | AC157 |
| Steering system |
Hydraulic type | |
| Brake type | Hydraulic type |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
