The electric scissor lift (fully self-propelled lifting platform) features automatic travel, an integrated design, and a built-in battery to meet diverse working conditions. It requires no external power source and can be raised or lowered freely without external traction.
Item No :
NMLPOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
10-15 daysWeight :
900-3300kgAerial Work Platform Scissors Lift

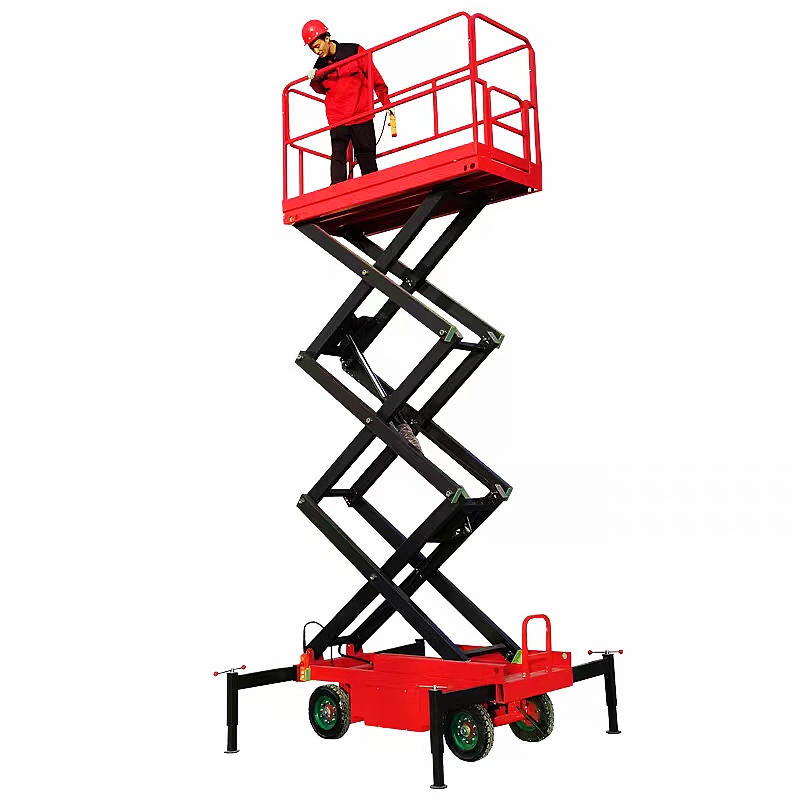

This electric scissor lift (fully self-propelled lifting platform) features automatic travel, an integrated design, and a built-in battery to meet diverse operating requirements. It has a maximum lifting height of 14 meters and a maximum working height of 15.8 meters. It requires no external power source and can be raised or lowered without external traction. The device can be driven and steered by one person; the operator simply grasps the control handle to control forward, backward, turn, and move quickly or slowly. The self-propelled electric scissor lift is flexible and easy to operate, saving labor and making aerial work more efficient and convenient, making it an ideal device for aerial work.

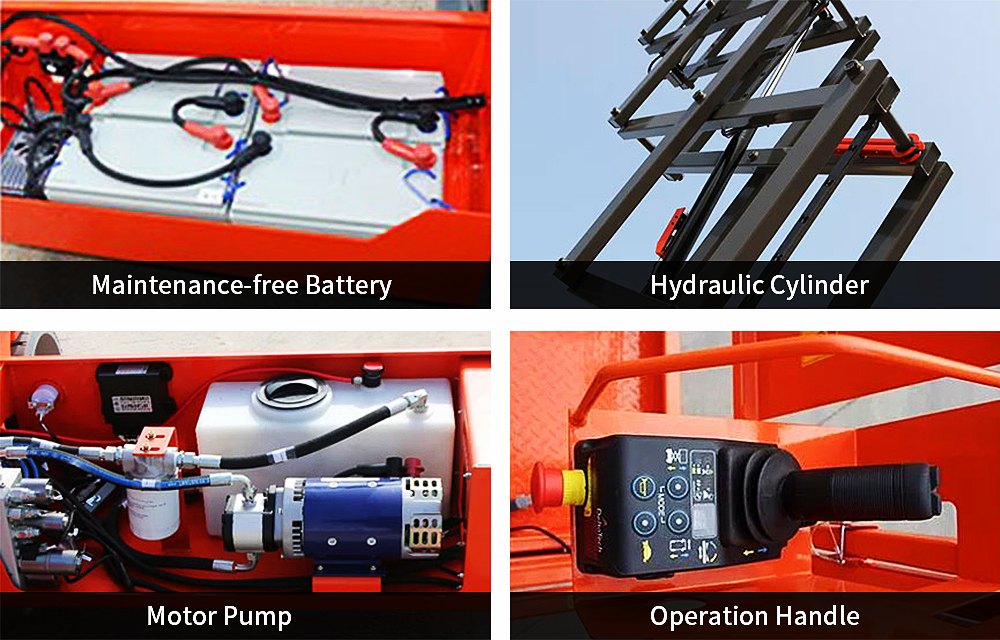

Details:
Feature:
1.Cylinder explosion-proof system
2.Automatic braking system
3.Emergency descent system
4.Pit protection system
5.Charge protection system
6.Digital self-inspection system
Specification:
| Maximum working height | mm | 15800 |
| Maximum platform height | mm | 13800 |
| Safe working load | kg | 230 |
| Extended platform safe working load | kg | 113 |
| Working platform size (length x width) | mm | 2640×1130 |
| Overall dimensions (guardrails not folded) | mm | 2790×1400×2600 |
| Overall dimensions (guardrails folded) | mm | 2790×1400×2060 |
| Extended table size | mm | 900 |
| Minimum ground clearance | mm | 106/29 |
| Wheelbase | mm | 1865 |
| Drive motor | kW | 4.5 |
| Battery | V/Ah | 24/240 |

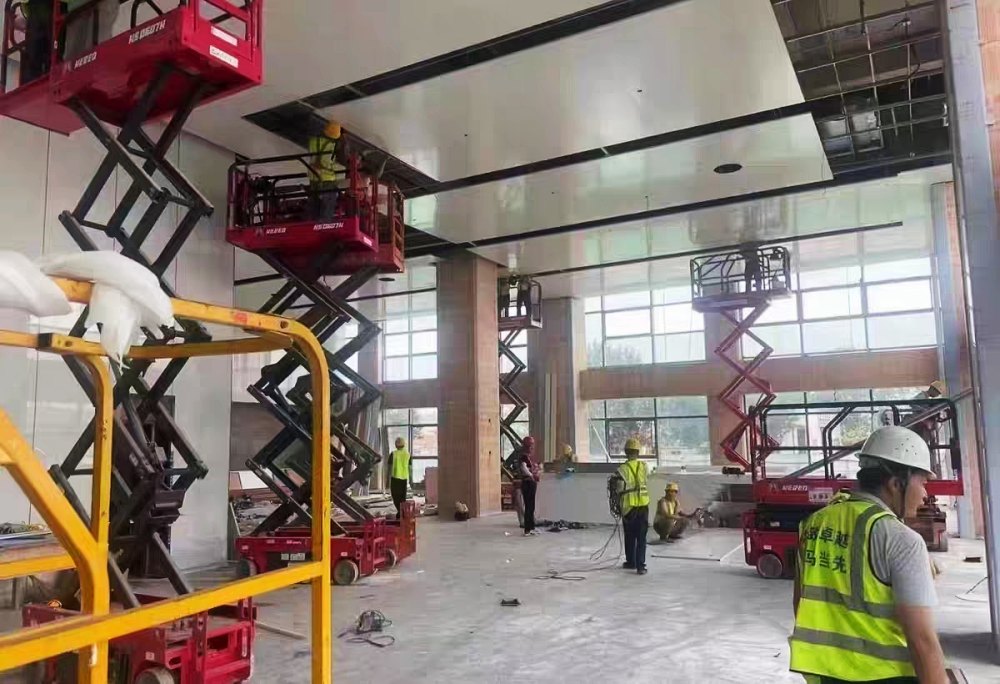

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics

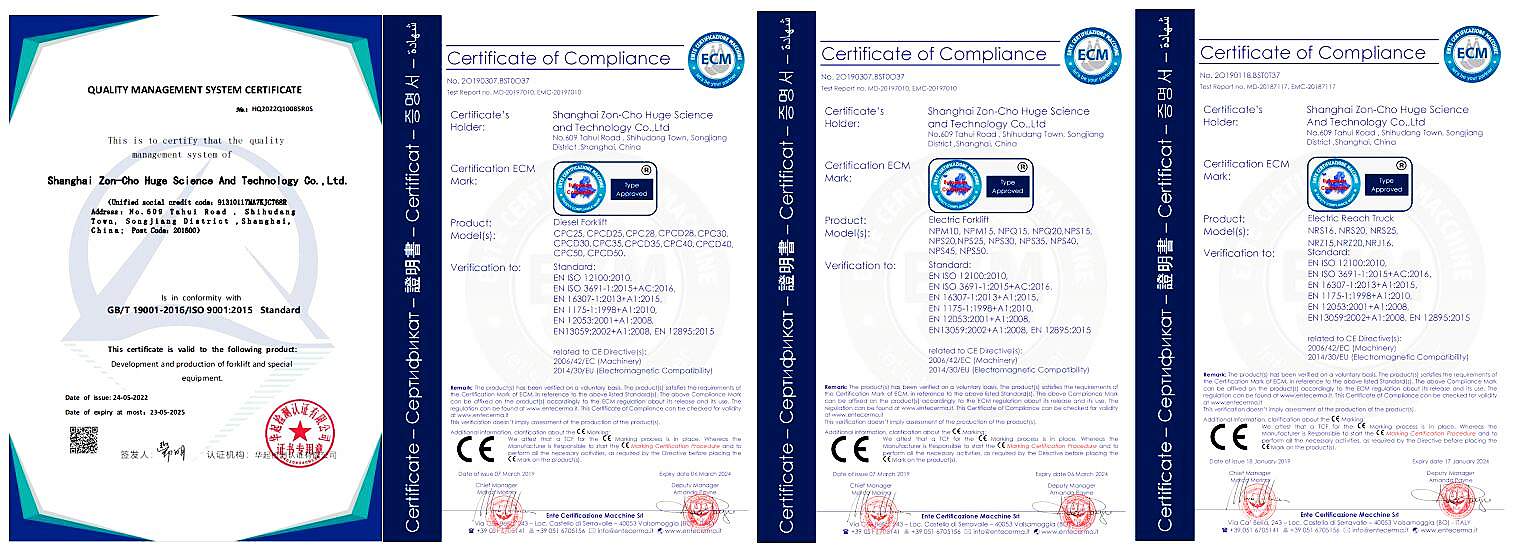

Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
